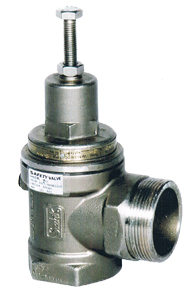

Angle Type Safety Valve

Body

CF8 / CF8M/ CF3M

Spring Cover

CF8

Plug

CF8 / CF8M / CF3M

Sealing Spacer

NBR

Plug Bolt

SS 304

Diaphragm

NBR / Viton

V-Sea

NBR / Viton

Washer

Brass

Spring

Spring Steel

Adjusting System

SS 304

Temperature Range

80° C (For water)

Maximum

21 kgf / cm²

Working Pressure

40 kgf / cm²

Pressure

1~6 kgf / cm²

Adjusting Range

4~10 kgf / cm²
8~12 kgf / cm²
20~35 kgf / cm²
